Swivel Joints

Download product catalogue

Available in sizes 3/4″ through 3 ” up to 15,000 PSI non-stock cold working pressure, Swivel Joints offer the following features.

• Standard packing units (operating temperature to 225 °F)
• Available for standard and sour service
• All sizes are available in 8 styles, for 360 rotations in 1, 2 or 3 planes

Available with integral, NPST or welded union end connections from 10,000 to 15,000 PSI NSCWP for standard and sour service.

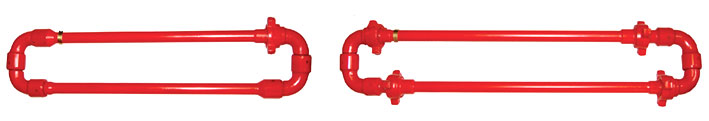

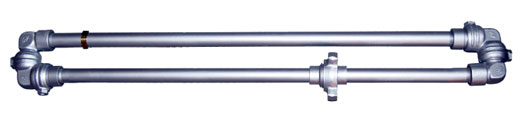

Steel Hose Assemblies

High pressure cementing and circulating hose incorporate swivel joints of forged steel with superior quality hardened ball races and high-pressure type packing units.

Mone wing union and two style 50 or style 10 swivel joints with threaded ends

• One wing union and one each style 50 and style 10 swivel joints with integral wing union ends

• Four wing unions and two style 50 or style 10 swivel joints with integral wing union ends
• Four wing unions and two style 50 or style 10 swivel joints

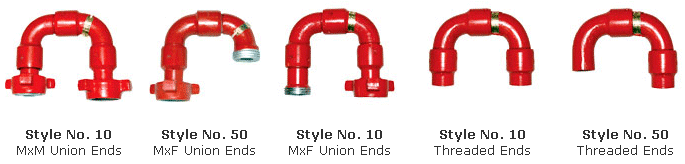

Long Radius Swivel Joints
